FF200R12KS4 1200V 200A IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Motor Drives and High Power UPS
Features
-
High-Power Dual IGBT Module
-
Voltage/Current Rating: 1200V / 200A
-
Advanced IGBT and Diode Chip Technology
-
Low VCE(sat) (Low Conduction Loss)
-
Low Switching Losses
-
High Short-Circuit Ruggedness (SCWT)
-
High Isolation Voltage
-
Low-Inductance Package Design
-
Integrated Temperature Sensor (NTC)
-
Industrial Grade Reliability
Applications
-
Industrial Motor Drives: For medium to high-power AC drives controlling pumps, fans, compressors, and conveyors.
-
Uninterruptible Power Supplies (UPS): Medium to high-power three-phase UPS systems.
-
Solar Inverters: For commercial and utility-scale string inverters.
-
Welding Equipment Power Supplies.
-
General-Purpose Industrial Inverters and Frequency Converters.
Description
The FF200R12KS4 is a robust dual IGBT module designed for high-performance and reliable power conversion in demanding industrial applications. It delivers a high voltage rating of 1200V and a substantial current rating of 200A. Utilizing advanced IGBT and freewheeling diode chip technology, it achieves an optimal balance between low collector-emitter saturation voltage (VCE(sat)) for reduced conduction losses and optimized switching characteristics for high efficiency. The module is engineered for industrial ruggedness, featuring high short-circuit withstand capability, excellent electrical isolation, and a low-inductance package design to ensure stable and reliable operation in high-power systems such as motor drives and UPS inverters.
INFORMATION
| Voltage |
1200 V |
| Model Number |
FF200R12KS4 |
| Brand |
Infineon |
| Current Rating |
200 A |
| Color |
WHITE |
| Memory |
ELECTRONICS |
| Availability |
In Stock |

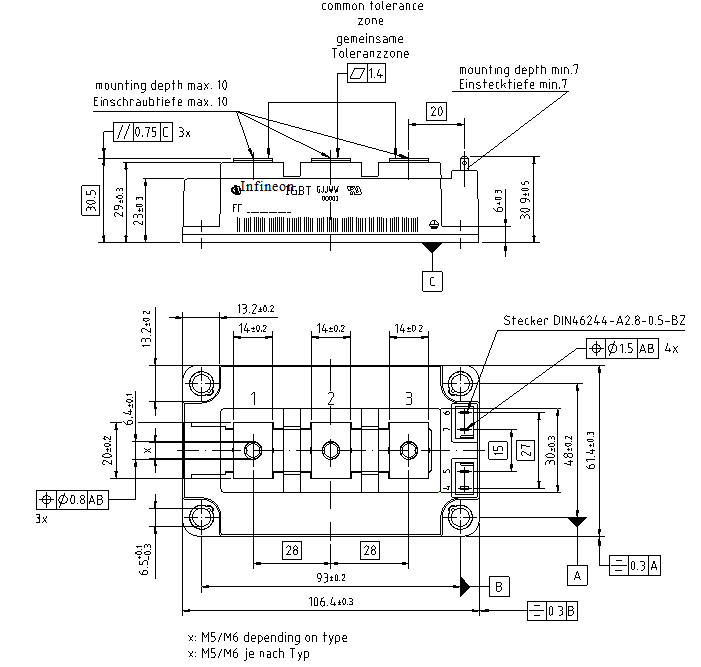

Drawing
